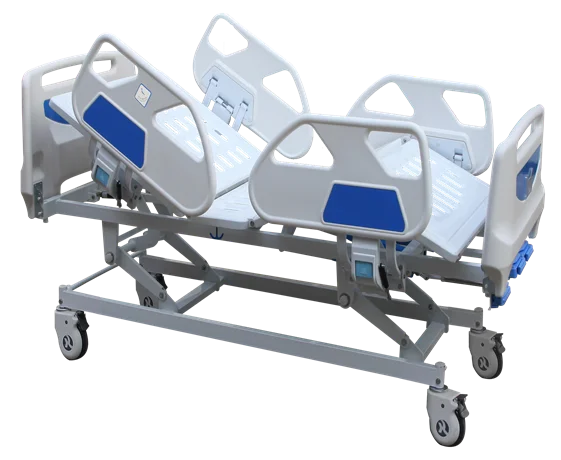

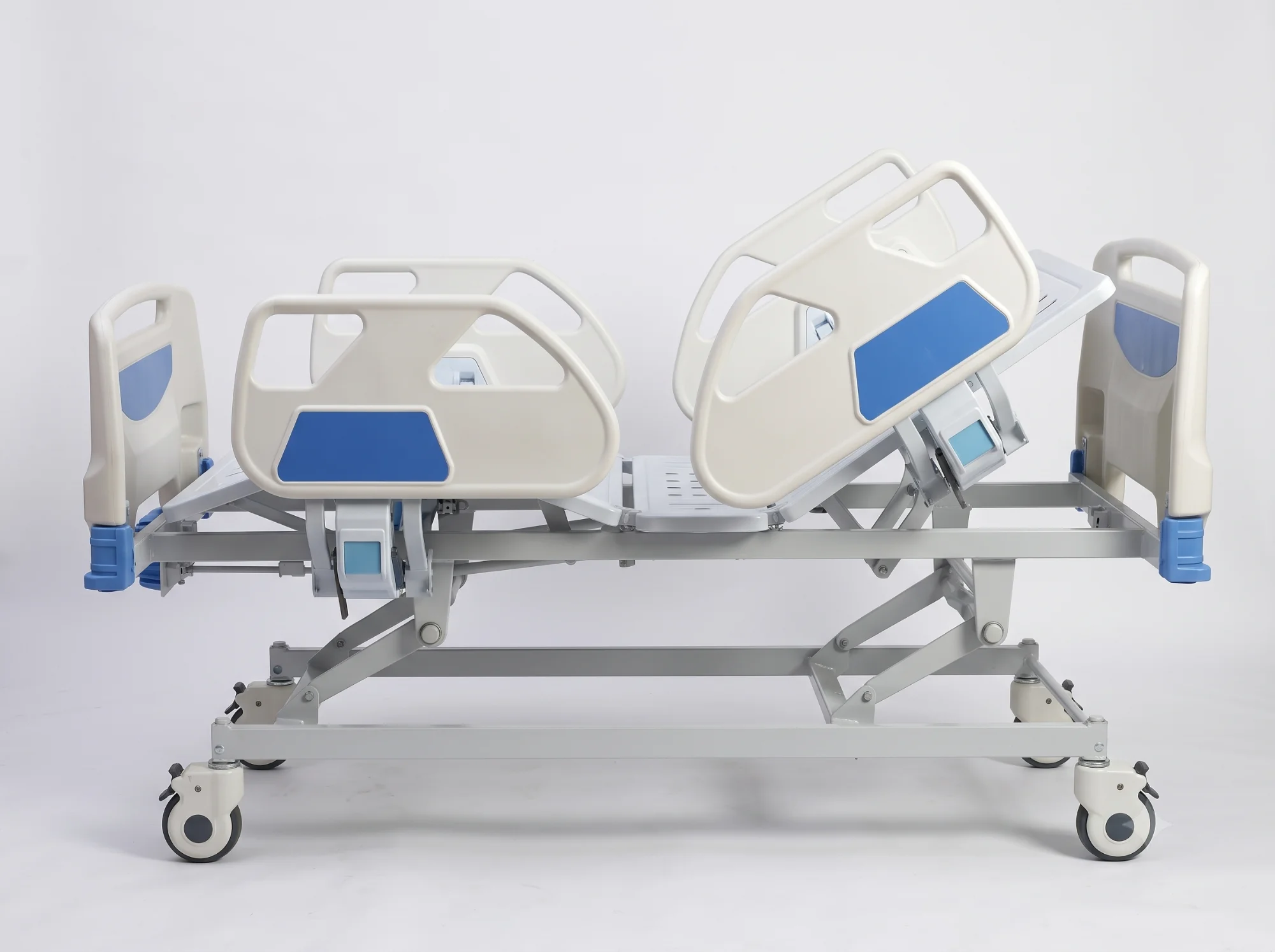

Three-Function Manual Bed with ABS Rails & Central Lock - ATD THF5-2026
Central locking brake pedal • 400-730 mm height • E-type ABS rails with angle gauges
KEY FEATURES
Three-Function Manual Elevation
Manual crank control of height adjustment (400-730 mm), backrest (0-75° ±10%), and knee-rest (0-35° ±10%).
Central Locking Brake Pedal Chassis
Four 5" central controlled castors locked simultaneously with a central foot pedal for maximum stability.
E-Type ABS Rails with Angle Gauges
1 pair of E-type split ABS side rails equipped with 2 integrated angle indicators for incline tracking.
Integrated Stamped Steel Base
One-piece stamped steel frame and mattress deck with baked epoxy-polyester powder coating.
Detachable ABS Head & Foot Boards
1 pair of ergonomic detachable ABS boards easily removed for patient transfer and decontamination.
EU Standard & USFDA Approved
Complies with European and US medical safety standards; tested to support loads exceeding 250 kg.
Comprehensive Standard Fittings
Supplied with 3 manual cranks, 1 pair ABS rails, 2 angle indicators, 2 urine hooks, 4 IV holes, and 1 IV pole.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Height Range | 400 - 730 mm (Adjustable by manual crank) |
| Back-Rest Angle | 0 - 75° (±10%) by manual crank |
| Knee-Rest Angle | 0 - 35° (±10%) by manual crank |
| Braking System | Four 5" central controlled castors with pedal chassis |
| Frame & Base | Integrated stamping frame and mattress base, epoxy polyester powder coated & baked finish |
| Side Rails | 1 pair E-type ABS side rails with 2 angle indicators |
| Cranks | 3 pcs manual crank handles |
| Head & Foot Boards | 1 pair detachable ABS head and foot boards |
| Quality Certifications | EU Standard, USFDA Approval (Noiseless wheels, >250 kg) |
| Standard Accessories | 3 cranks, 1 pair boards, 1 pair E-type rails, 2 angle gauges, 4 castors, 2 urine hooks, 4 IV holes, 1 IV pole |
Precision Clinical Advantages
Three-Function Manual Elevation
Manual crank control of height adjustment (400-730 mm), backrest (0-75° ±10%), and knee-rest (0-35° ±10%).
Central Locking Brake Pedal Chassis
Four 5" central controlled castors locked simultaneously with a central foot pedal for maximum stability.
E-Type ABS Rails with Angle Gauges
1 pair of E-type split ABS side rails equipped with 2 integrated angle indicators for incline tracking.
Integrated Stamped Steel Base
One-piece stamped steel frame and mattress deck with baked epoxy-polyester powder coating.
Detachable ABS Head & Foot Boards
1 pair of ergonomic detachable ABS boards easily removed for patient transfer and decontamination.
EU Standard & USFDA Approved
Complies with European and US medical safety standards; tested to support loads exceeding 250 kg.
Comprehensive Standard Fittings
Supplied with 3 manual cranks, 1 pair ABS rails, 2 angle indicators, 2 urine hooks, 4 IV holes, and 1 IV pole.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
