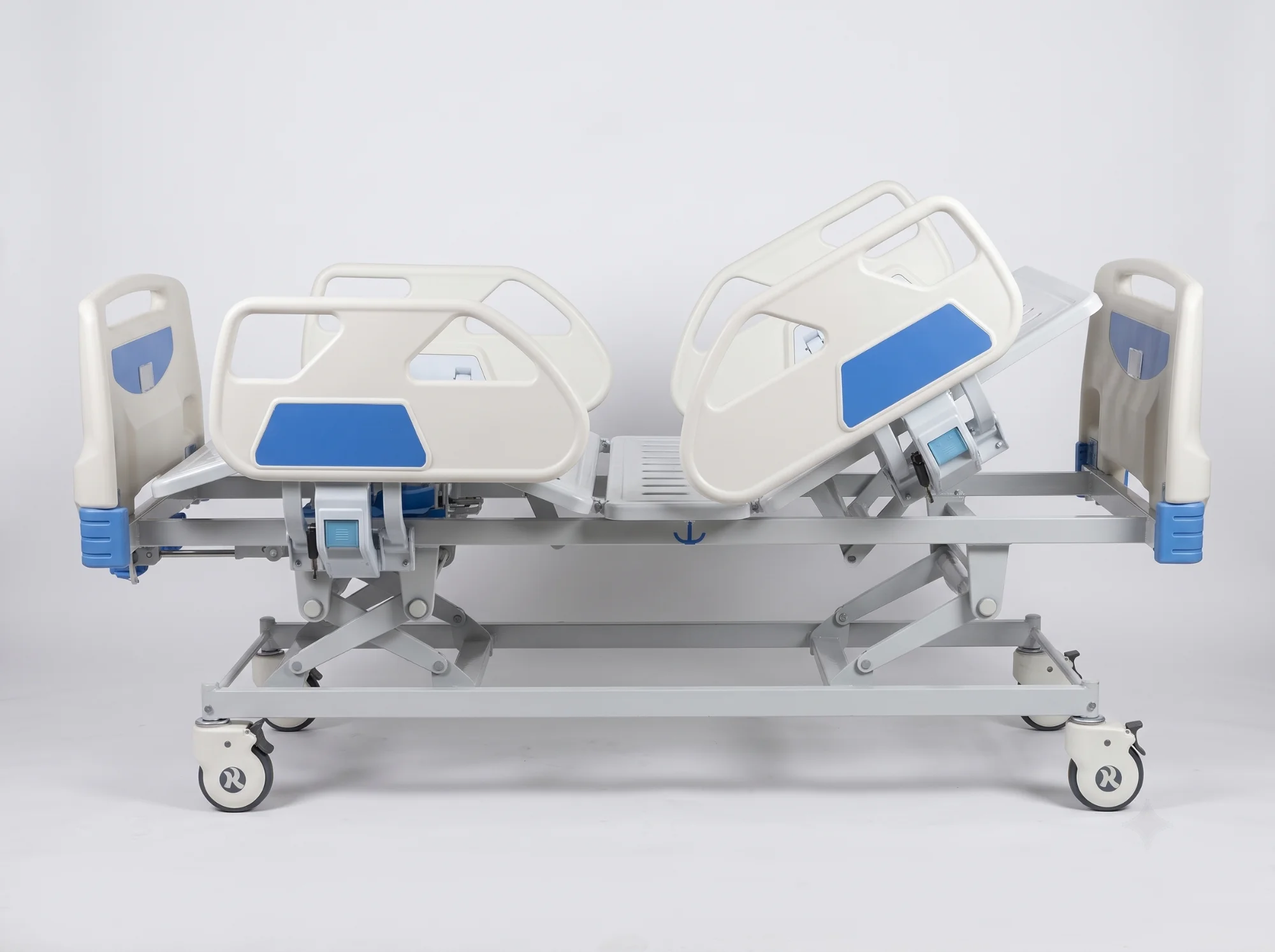

Three-Function Manual Bed with E-Type ABS Rails - ATD THF4-2026
E-type ABS rails with angle indicators • 435-743 mm height • Stamped steel frame
KEY FEATURES
Three-Function Manual Crank Drive
Three manual cranks control height adjustment (435-743 mm), backrest (0-75° ±10%), and knee-rest (0-35° ±10%).
E-Type ABS Side Rails with Gauges
1 pair of E-type split ABS side rails equipped with 2 integrated angle indicators for position monitoring.
Integrated Stamped Steel Base
Seamless stamped steel mattress deck and frame with baked chip- and scratch-resistant powder coating.
5-Inch Castors with Brakes
Four noiseless 5" wheel castors equipped with individual positive foot brakes.
Detachable ABS Head & Foot Boards
1 pair of ergonomic detachable ABS boards for rapid airway access, cleaning, and patient transfer.
EU Standard & USFDA Approved
Compliant with rigorous international hospital standards; rated to support loads exceeding 250 kg.
Included Hospital Accessories
Supplied with 3 manual cranks, 1 pair ABS rails, 2 angle indicators, 2 urine hooks, 4 IV holes, and 1 IV pole.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Height Range | 435 - 743 mm (Adjustable by manual crank) |
| Back-Rest Angle | 0 - 75° (±10%) by manual crank |
| Knee-Rest Angle | 0 - 35° (±10%) by manual crank |
| Frame & Base | Integrated stamping frame and mattress base, epoxy polyester powder coated & baked finish |
| Side Rails | 1 pair E-type ABS side rails with 2 angle indicators |
| Castors | Four 5" castors with brakes (noiseless, support >250 kg) |
| Cranks | 3 pcs manual crank handles |
| Head & Foot Boards | 1 pair detachable ABS head and foot boards |
| Quality Certifications | EU Standard, USFDA Approval |
| Standard Accessories | 3 cranks, 1 pair boards, 1 pair E-type rails, 2 angle gauges, 4 castors, 2 urine hooks, 4 IV holes, 1 IV pole |
Precision Clinical Advantages
Three-Function Manual Crank Drive
Three manual cranks control height adjustment (435-743 mm), backrest (0-75° ±10%), and knee-rest (0-35° ±10%).
E-Type ABS Side Rails with Gauges
1 pair of E-type split ABS side rails equipped with 2 integrated angle indicators for position monitoring.
Integrated Stamped Steel Base
Seamless stamped steel mattress deck and frame with baked chip- and scratch-resistant powder coating.
5-Inch Castors with Brakes
Four noiseless 5" wheel castors equipped with individual positive foot brakes.
Detachable ABS Head & Foot Boards
1 pair of ergonomic detachable ABS boards for rapid airway access, cleaning, and patient transfer.
EU Standard & USFDA Approved
Compliant with rigorous international hospital standards; rated to support loads exceeding 250 kg.
Included Hospital Accessories
Supplied with 3 manual cranks, 1 pair ABS rails, 2 angle indicators, 2 urine hooks, 4 IV holes, and 1 IV pole.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
