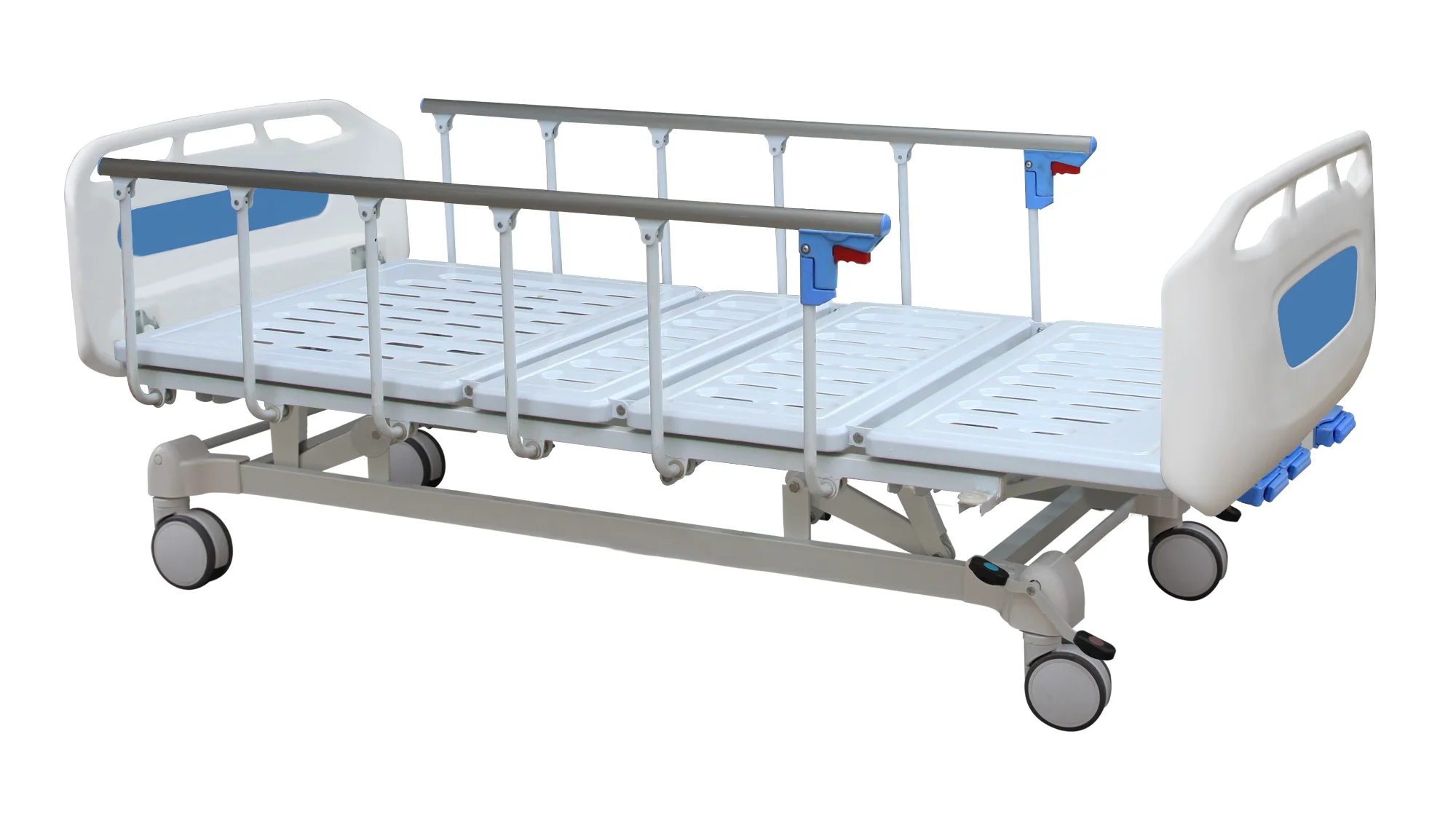

Three-Function Manual Bed with Central Braking - ATD THF3-2026
Extra-wide 1090 mm width • 480-820 mm height travel • 5" central braking
KEY FEATURES
Extra-Wide 1090 mm Platform
Expanded platform width (L2260 x W1090 mm) provides enhanced patient comfort and turning clearance.
Expansive 480-820 mm Height Range
Manual crank height adjustment from lowest 480 mm to highest 820 mm distance to floor.

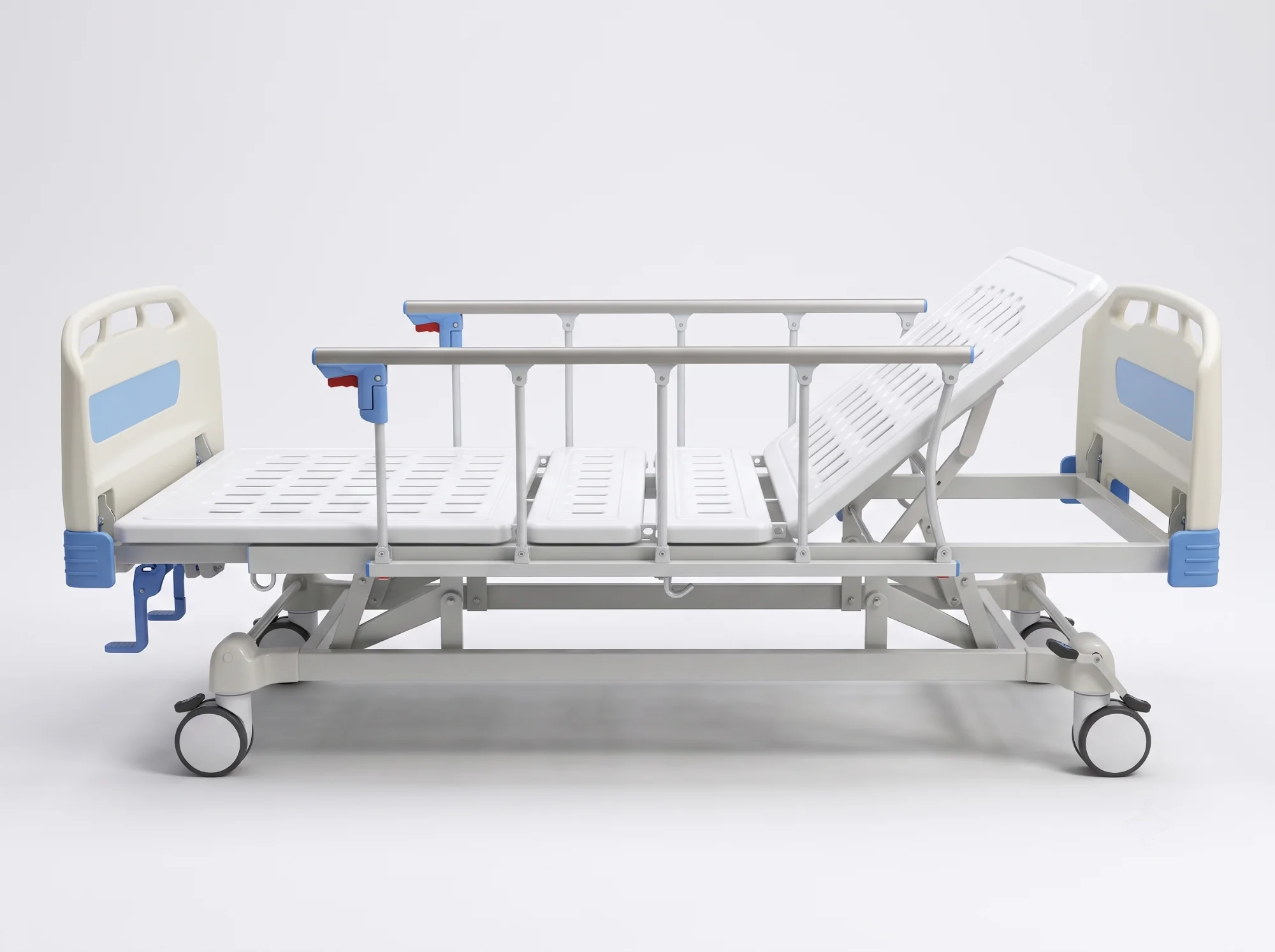

Three-Function Manual Articulation
Precision crank elevation of backrest (0-75° ±10%) and knee-rest (0-35° ±10%).
5-Inch Central Braking Castors
Four 5" central controlled castors locked simultaneously with a single foot pedal step.
Integrated Stamped Steel Base
One-piece stamped steel deck finished with baked scratch- and chip-resistant epoxy-polyester coating.
Collapsible Side Safety Rails
2 pieces of fold-down collapsible side safety rails for safe patient containment and egress.
EU Standard & USFDA Approved
Built and tested to international medical hospital standards; supports static loads over 250 kg.
Full Hospital Accessories
Includes 2 detachable ABS headboards, 2 side rails, 2 urine hooks, 4 IV drip holes, and 1 IV pole.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Overall Specification | L2260 x W1090 x H480-820 mm |
| Height Range | 480 - 820 mm (Distance between bed frame and floor) |
| Back-Rest Angle | 0 - 75° (±10%) by manual crank |
| Knee-Rest Angle | 0 - 35° (±10%) by manual crank |
| Frame & Base | Integrated stamping frame and mattress base, epoxy polyester powder coated |
| Castors | Four 5" central braking castors (noiseless, support >250 kg) |
| Headboards | 2 pcs detachable ABS headboards |
| Side Rails | 2 pcs collapsible side rails |
| Quality Certifications | EU Standard, USFDA Approval |
| Standard Accessories | 4 castors, 2 headboards, 2 side rails, 2 urine hooks, 4 IV drip holes, 1 IV pole |
Precision Clinical Advantages
Extra-Wide 1090 mm Platform
Expanded platform width (L2260 x W1090 mm) provides enhanced patient comfort and turning clearance.
Expansive 480-820 mm Height Range
Manual crank height adjustment from lowest 480 mm to highest 820 mm distance to floor.
Three-Function Manual Articulation
Precision crank elevation of backrest (0-75° ±10%) and knee-rest (0-35° ±10%).
5-Inch Central Braking Castors
Four 5" central controlled castors locked simultaneously with a single foot pedal step.
Integrated Stamped Steel Base
One-piece stamped steel deck finished with baked scratch- and chip-resistant epoxy-polyester coating.
Collapsible Side Safety Rails
2 pieces of fold-down collapsible side safety rails for safe patient containment and egress.
EU Standard & USFDA Approved
Built and tested to international medical hospital standards; supports static loads over 250 kg.
Full Hospital Accessories
Includes 2 detachable ABS headboards, 2 side rails, 2 urine hooks, 4 IV drip holes, and 1 IV pole.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
