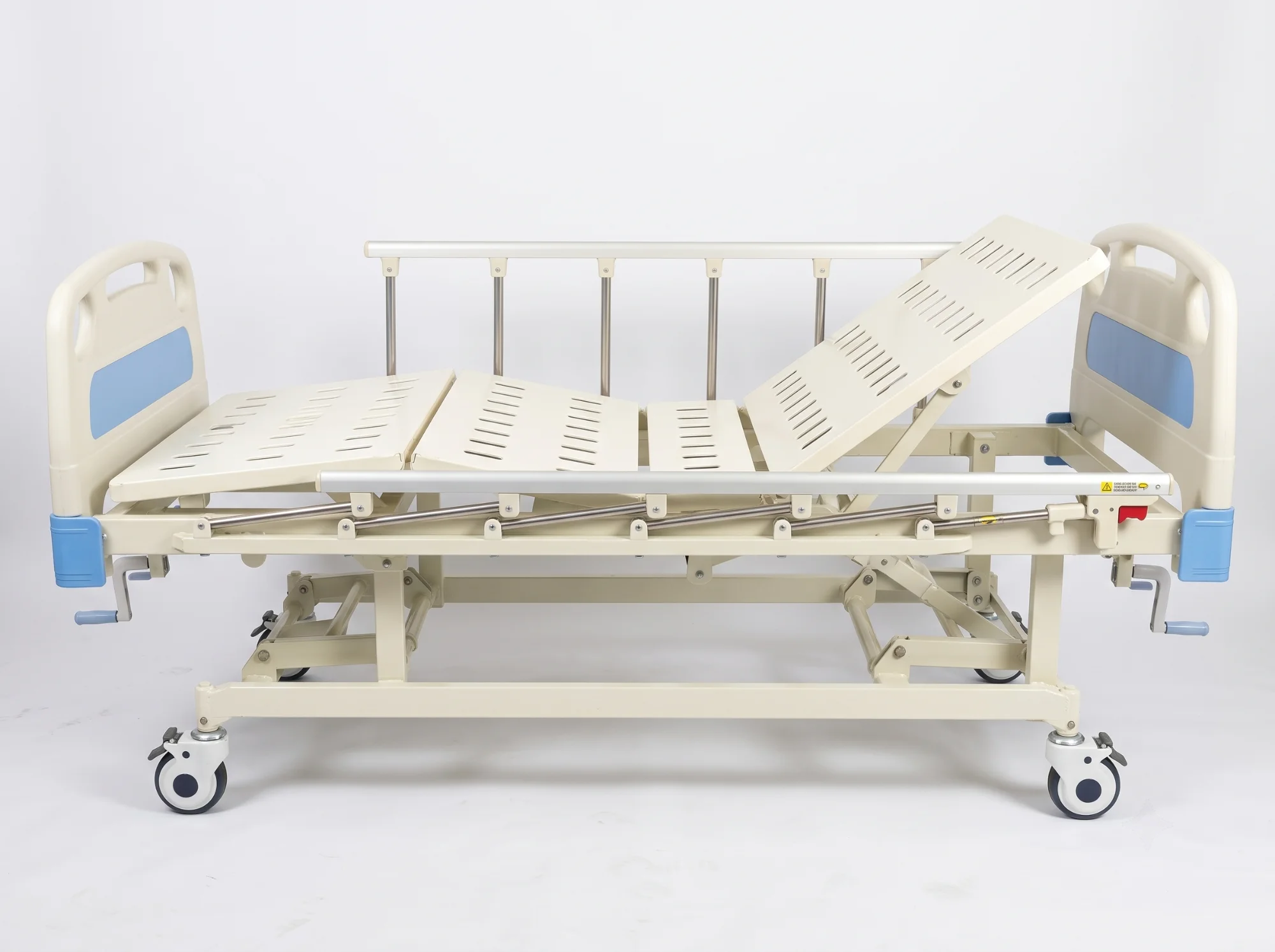

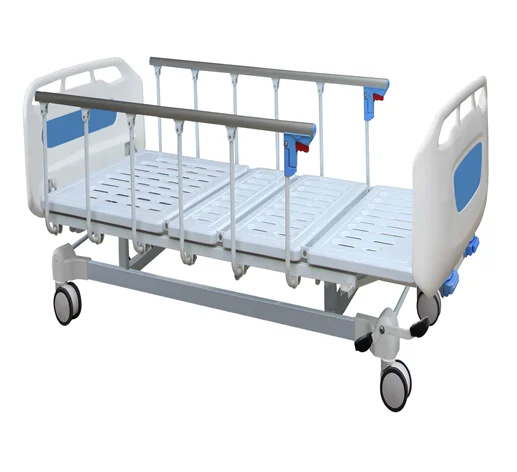

Three-Function Manual Hospital Bed with Collapsible Rails - ATD THF2-2026
400-720 mm height adjustment • Stamped steel base • Collapsible guardrails
KEY FEATURES

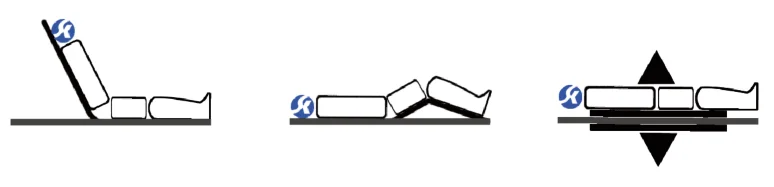

Full Three-Function Crank Articulation
Manual crank control of height elevation (400-720 mm), backrest (0-75° ±10%), and knee-rest (0-35° ±10%).
Integrated Stamped Steel Base
Seamless stamped steel mattress base and frame with baked epoxy-polyester powder finish.
Collapsible Safety Guardrails
Pair of fold-down collapsible guardrails provide reliable patient containment and quick egress.
5-Inch Castors with Brakes
Four noiseless 5" wheel castors equipped with individual foot brakes for positive locking.
Detachable ABS Head & Foot Boards
1 pair of durable ABS boards easily removed for emergency airway management and sanitation.
EU Standard & USFDA Approved
Certified to European and US medical standards; robust construction supports loads over 250 kg.
Complete Standard Accessory Set
Supplied with 4 manual cranks, 1 pair guardrails, 1 pair ABS boards, 2 urine hooks, 4 IV holes, and 1 IV pole.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Height Range | 400 - 720 mm (Adjustable by manual crank) |
| Back-Rest Angle | 0 - 75° (±10%) by manual crank |
| Knee-Rest Angle | 0 - 35° (±10%) by manual crank |
| Frame & Base | Integrated stamping frame and mattress base, epoxy polyester powder coated & baked finish |
| Castors | Four 5" castors with brakes (noiseless, support >250 kg) |
| Cranks | 4 pcs manual crank handles |
| Head & Foot Boards | 1 pair detachable ABS head and foot boards |
| Guardrails | 1 pair collapsible guardrails |
| Quality Certifications | EU Standard, USFDA Approval |
| Standard Accessories | 4 cranks, 1 pair boards, 1 pair guardrails, 4 castors, 2 urine hooks, 4 IV drip holes, 1 IV pole |
Precision Clinical Advantages
Full Three-Function Crank Articulation
Manual crank control of height elevation (400-720 mm), backrest (0-75° ±10%), and knee-rest (0-35° ±10%).
Integrated Stamped Steel Base
Seamless stamped steel mattress base and frame with baked epoxy-polyester powder finish.
Collapsible Safety Guardrails
Pair of fold-down collapsible guardrails provide reliable patient containment and quick egress.
5-Inch Castors with Brakes
Four noiseless 5" wheel castors equipped with individual foot brakes for positive locking.
Detachable ABS Head & Foot Boards
1 pair of durable ABS boards easily removed for emergency airway management and sanitation.
EU Standard & USFDA Approved
Certified to European and US medical standards; robust construction supports loads over 250 kg.
Complete Standard Accessory Set
Supplied with 4 manual cranks, 1 pair guardrails, 1 pair ABS boards, 2 urine hooks, 4 IV holes, and 1 IV pole.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
