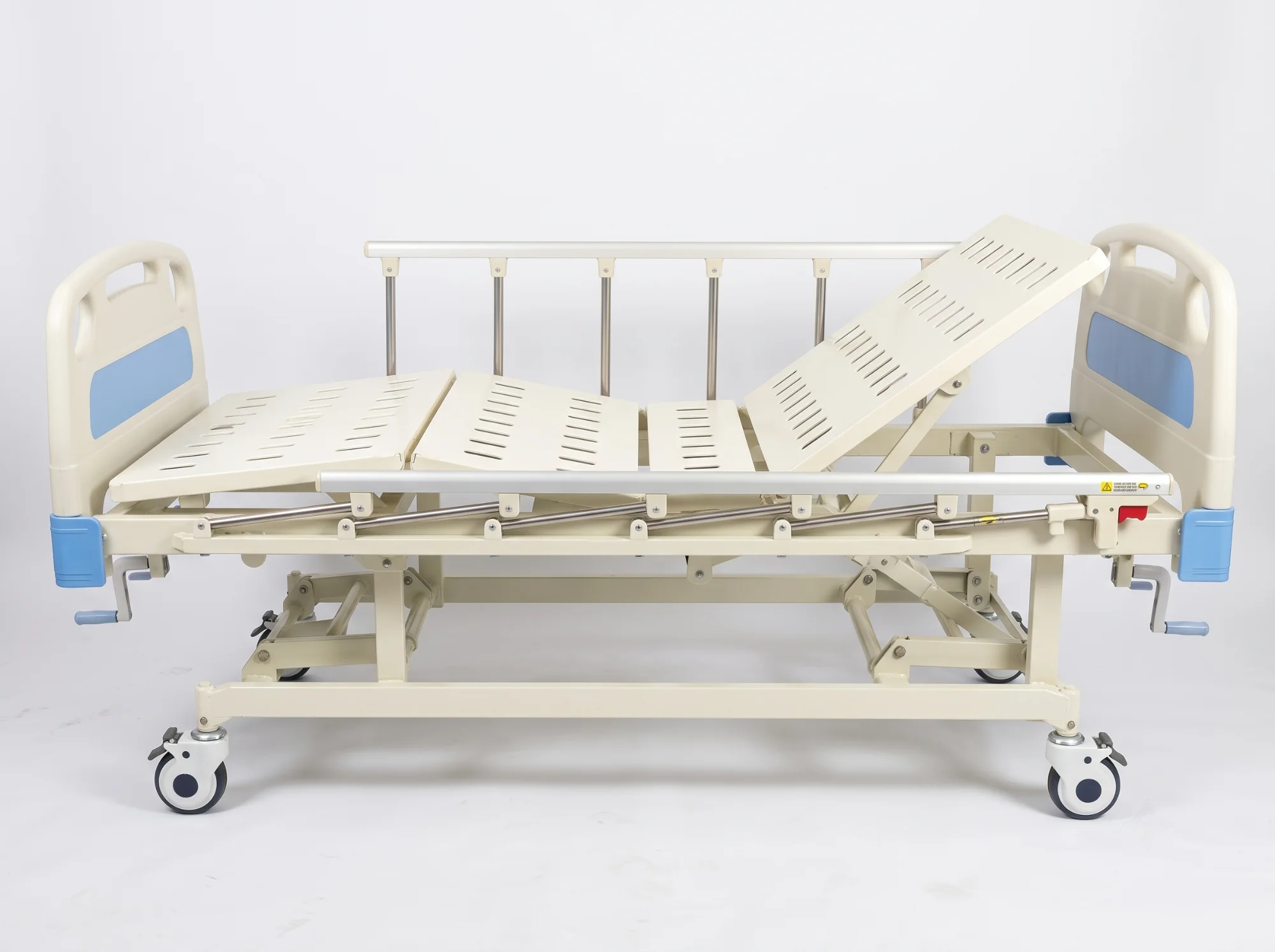

Three-Function Manual Hospital Bed (Hi-Low Adjustment) - ATD THF1-2026
3-crank Hi-Low height travel • 10-part steel deck • 6-bar aluminium rails
KEY FEATURES
Three Manual Crank Adjustments
Manual height travel (500-780 mm), back section (0-80° ±5°), and knee section (0-40° ±5°).
Hidden Auto-Limit Cranks
Retractable crank handles with automatic mechanical limit protection fold neatly under the bed frame.
Ten-Part Sectional Sleeping Deck
Sectioned 10-segment cold-rolled steel mattress deck engineered for anatomic support and comfort.
6-Bar Aluminium Side Boards
Pair of aluminium side boards reinforced with six vertical stainless steel bars each for patient fall safety.
Electro & Powder-Coated Chassis
Cold-rolled steel treated with immersion electro-coating and baked epoxy powder coating.
Taiwan Secure 125 mm Castors
Four 125 mm diameter castors with individual brakes ensure effortless, noiseless mobility.
Detachable ABS Head/Foot Boards
Easily removable ABS boards available in clean Blue or attractive Wooden finish options.
Complete Ward Accessory Suite
Includes 1 flexible stainless steel IV pole, 4 urine bag hooks, and 4 IV mounting holes.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Overall Size | L2260 x W980 x H430-720 mm |
| Hi-Low Range | 500 - 780 mm (Manual Crank) |
| Back Section Adjustment | 0 - 80° (±5°) |
| Knee Section Adjustment | 0 - 40° (±5°) |
| Bed Static Load | ≥ 250 kg |
| High-Low Dynamic Load | ≥ 170 kg |
| Sleeping Platform | Made with 10 parts of cold-rolled steel |
| Side Boards | 2 pcs aluminium side boards with 6 stainless steel bars each |
| Castors | 125 mm diameter Taiwan Secure castors with individual brakes |
| Head & Foot Boards | Detachable ABS boards (Blue and Wooden color options) |
| Standard Accessories | 1 pc S.S. flexible IV pole, 4 pcs urine bag hooks, 4 pcs IV holes |
Precision Clinical Advantages
Three Manual Crank Adjustments
Manual height travel (500-780 mm), back section (0-80° ±5°), and knee section (0-40° ±5°).
Hidden Auto-Limit Cranks
Retractable crank handles with automatic mechanical limit protection fold neatly under the bed frame.
Ten-Part Sectional Sleeping Deck
Sectioned 10-segment cold-rolled steel mattress deck engineered for anatomic support and comfort.
6-Bar Aluminium Side Boards
Pair of aluminium side boards reinforced with six vertical stainless steel bars each for patient fall safety.
Electro & Powder-Coated Chassis
Cold-rolled steel treated with immersion electro-coating and baked epoxy powder coating.
Taiwan Secure 125 mm Castors
Four 125 mm diameter castors with individual brakes ensure effortless, noiseless mobility.
Detachable ABS Head/Foot Boards
Easily removable ABS boards available in clean Blue or attractive Wooden finish options.
Complete Ward Accessory Suite
Includes 1 flexible stainless steel IV pole, 4 urine bag hooks, and 4 IV mounting holes.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
