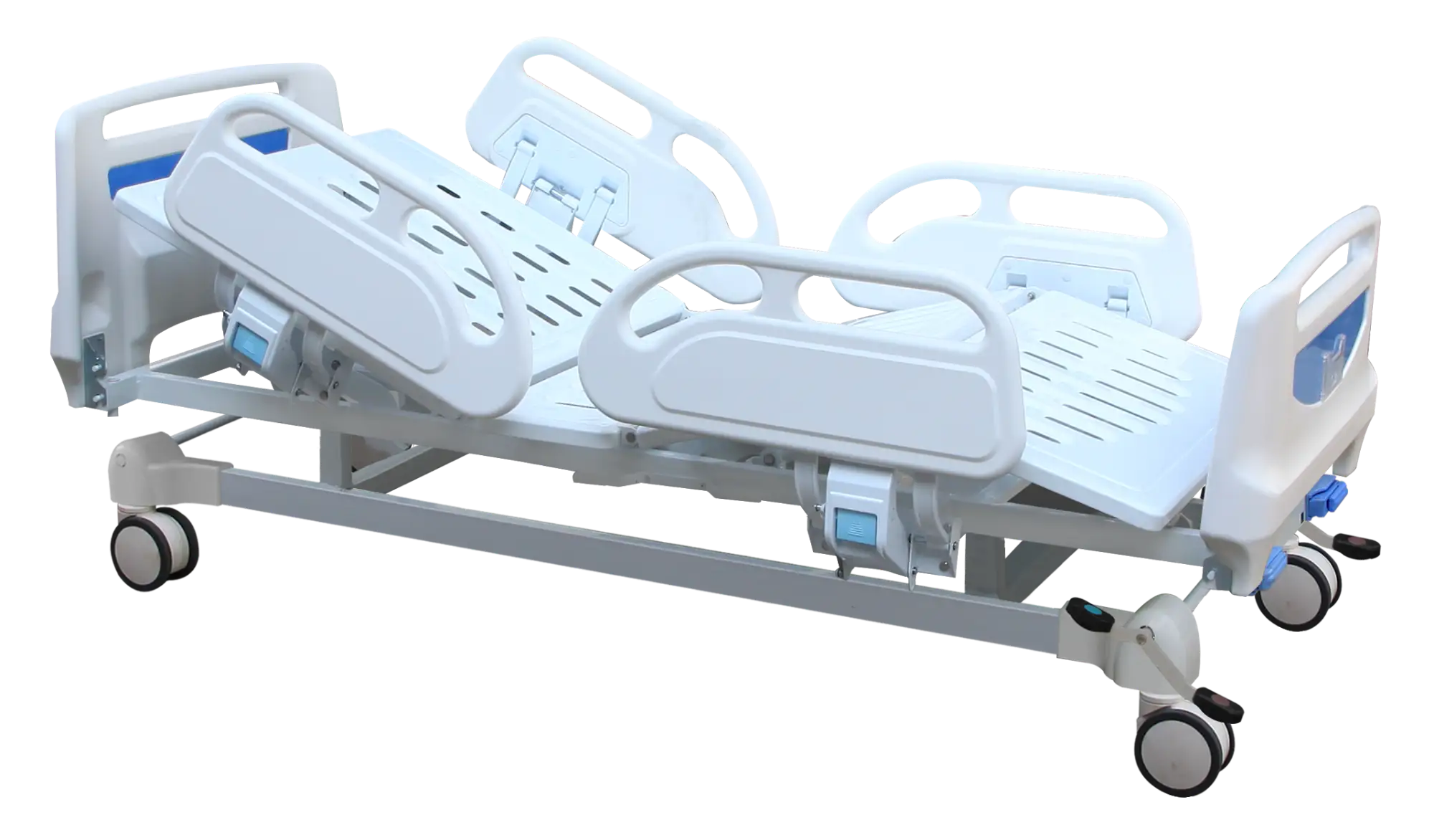

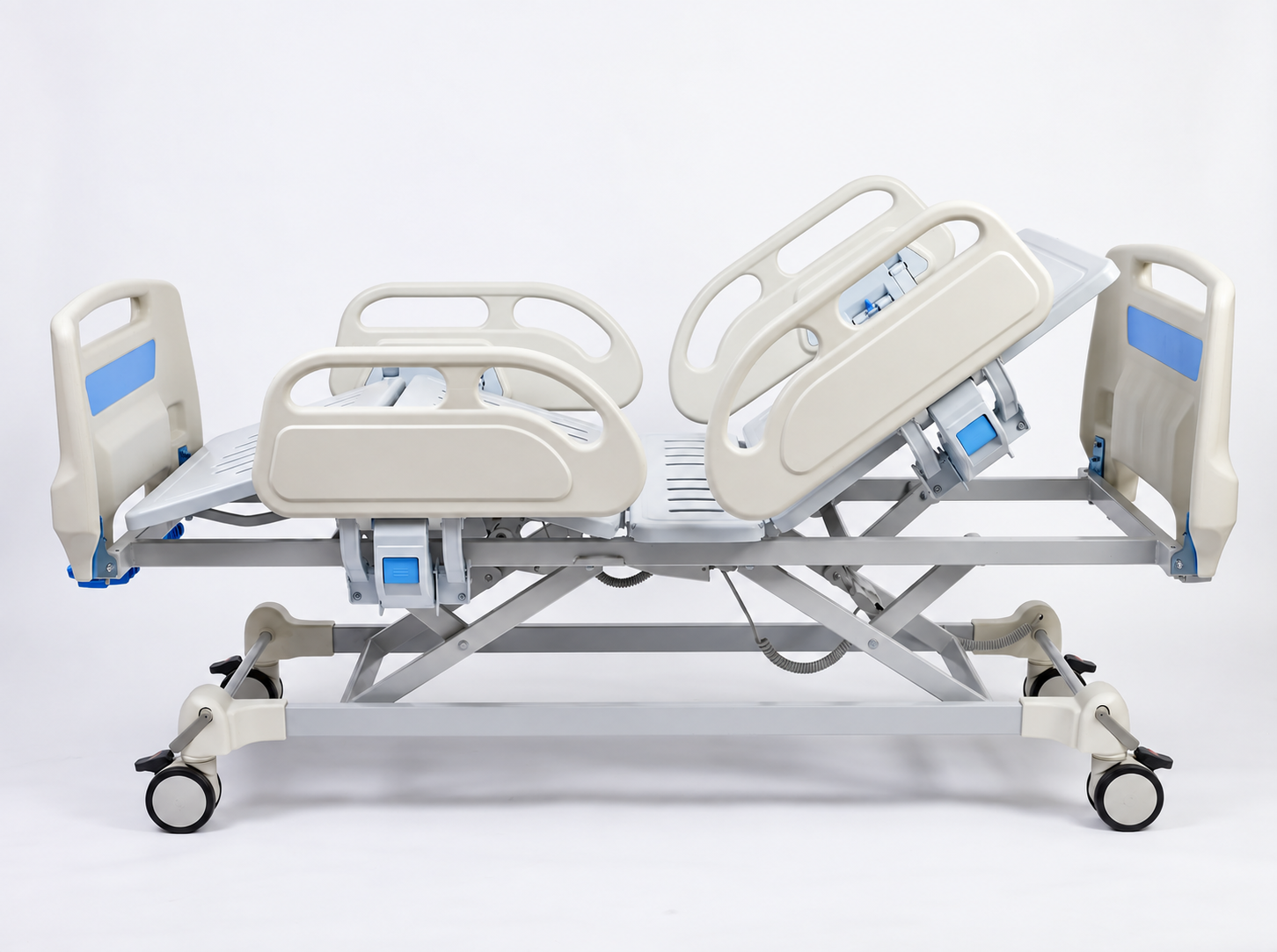

Two-Function Manual Bed with ABS Rails & Central Lock - ATD TF4-2026
4-piece ABS split rails • 5" Secure® central brake • Stamped steel frame
KEY FEATURES
Four C-Type ABS Split Side Rails
Four split ABS safety rails provide full-length patient fall protection with smooth one-handed lowering.
Dual Manual Crank Adjustments
Manual crank control of backrest elevation (0-75° ±10%) and knee-rest elevation (0-35° ±10%).
5-Inch Secure® Central-Brake Castors
Four 5" central controlled castors operated via a central brake pedal chassis for instant locking.
Integrated Stamped Steel Chassis
One-piece stamped steel mattress base and frame with baked chip- and scratch-resistant powder coating.
Detachable ABS Head & Foot Boards
1 pair of ergonomic detachable ABS boards for rapid emergency procedures and thorough disinfection.
EU Standard & USFDA Approved
Complies with rigorous international medical safety standards; tested to support loads exceeding 250 kg.
Included Hospital Accessories
Supplied with 2 manual cranks, 2 urine bag hooks, 4 IV drip holes, and 1 stainless steel IV pole.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Overall Dimensions | L2240 x W1020 x H500 mm |
| Bed Height | Fixed at 500 mm |
| Frame & Base | Integrated stamped steel with epoxy polyester powder coated & baked finish |
| Back-Rest Angle | 0 - 75° (±10%) by manual crank |
| Knee-Rest Angle | 0 - 35° (±10%) by manual crank |
| Side Rails | 4 pcs ABS C-type split side rails |
| Castors | Four 5" Secure® central controlled castors with pedal chassis |
| Head & Foot Board | 1 pair detachable ABS head and foot boards |
| Cranks | 2 pcs manual crank handles |
| Quality Certifications | EU Standard, USFDA Approval (Noiseless wheels, >250 kg) |
| Standard Accessories | 2 cranks, 1 pair boards, 4 ABS rails, 4 castors, 2 urine hooks, 4 IV holes, 1 IV pole |
Precision Clinical Advantages
Four C-Type ABS Split Side Rails
Four split ABS safety rails provide full-length patient fall protection with smooth one-handed lowering.
Dual Manual Crank Adjustments
Manual crank control of backrest elevation (0-75° ±10%) and knee-rest elevation (0-35° ±10%).
5-Inch Secure® Central-Brake Castors
Four 5" central controlled castors operated via a central brake pedal chassis for instant locking.
Integrated Stamped Steel Chassis
One-piece stamped steel mattress base and frame with baked chip- and scratch-resistant powder coating.
Detachable ABS Head & Foot Boards
1 pair of ergonomic detachable ABS boards for rapid emergency procedures and thorough disinfection.
EU Standard & USFDA Approved
Complies with rigorous international medical safety standards; tested to support loads exceeding 250 kg.
Included Hospital Accessories
Supplied with 2 manual cranks, 2 urine bag hooks, 4 IV drip holes, and 1 stainless steel IV pole.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
