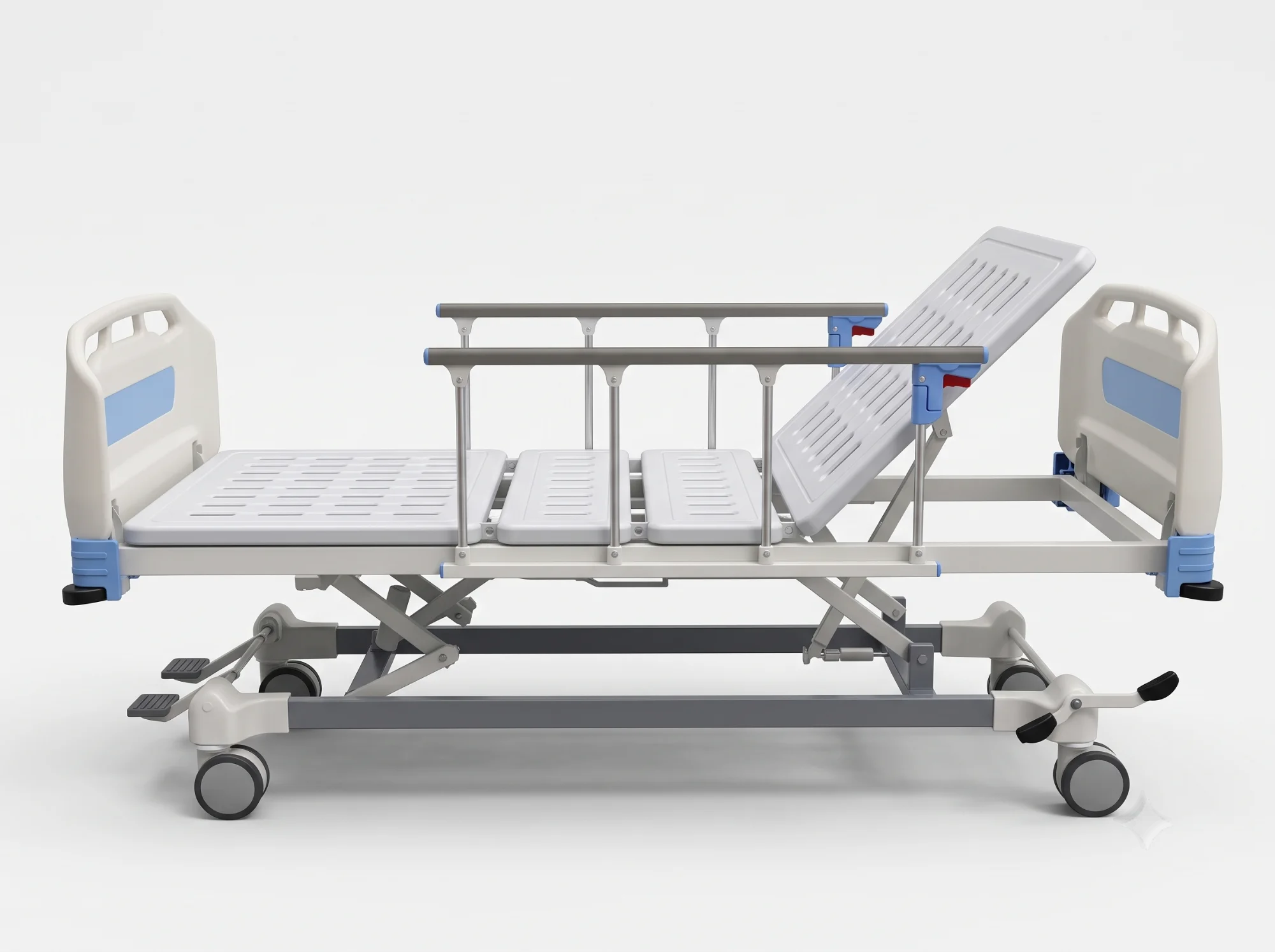

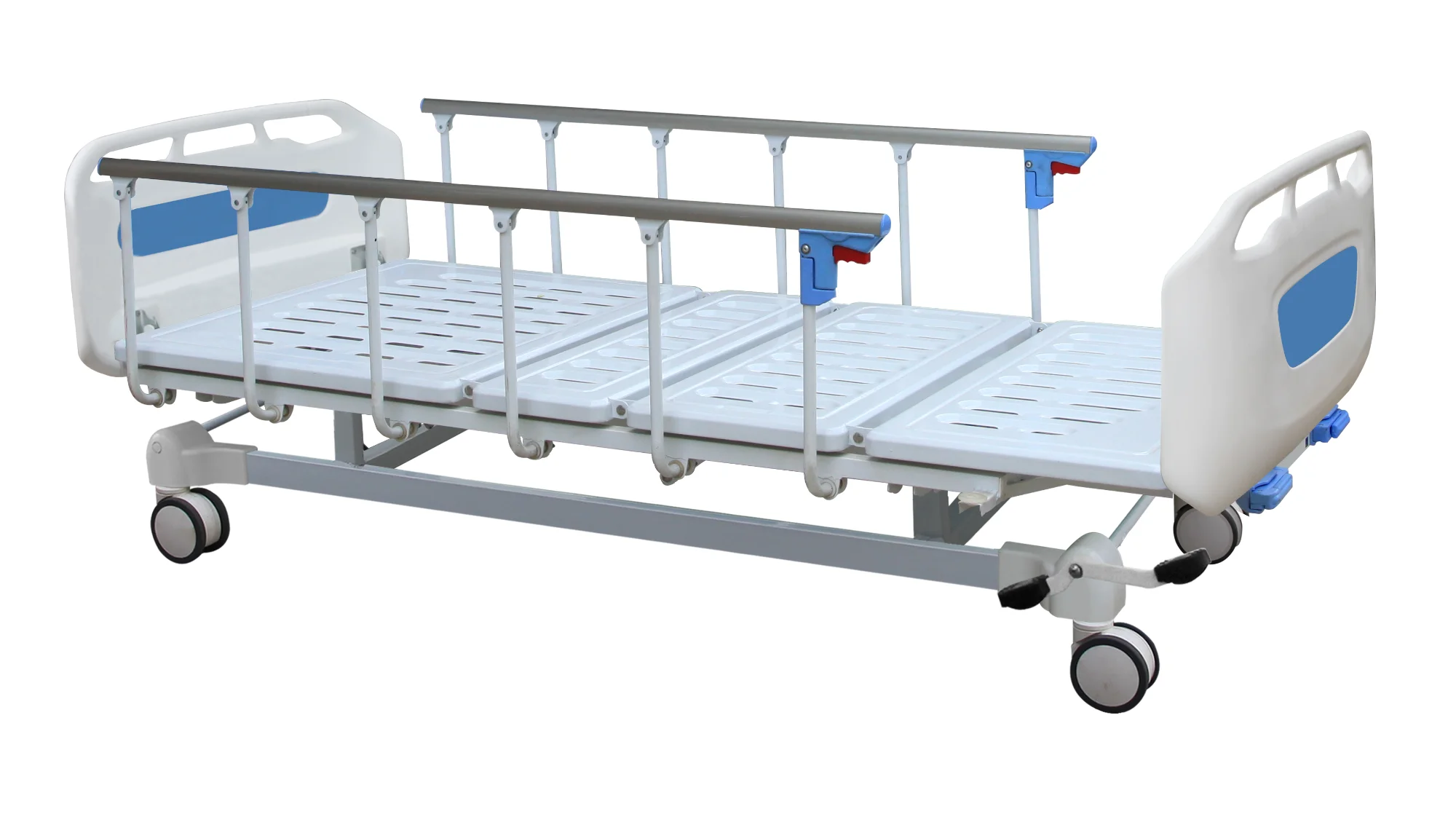

Manual Two-Crank Hospital Bed with Central Brake - ATD TF3-2026
5" central braking castors • Integrated stamped steel • EU & USFDA approved
KEY FEATURES
Integrated Stamped Steel Construction
Heavy-gauge stamped steel frame and mattress deck with baked epoxy-polyester powder finish.
Two-Crank Manual Fowler Articulation
Manual crank adjustment of backrest (0-75° ±10%) and knee-rest (0-35° ±10%).
5-Inch Central Braking Castors
Four 5" central controlled castors operated by a foot pedal chassis for simultaneous, noiseless locking.
Collapsible Side Safety Rails
Pair of fold-down collapsible side rails provide patient fall protection and fold away easily.
Detachable ABS Head & Foot Boards
High-density ABS boards easily removed for patient transfer and thorough hospital sanitation.
EU Standard & USFDA Approved
Manufactured to stringent international healthcare standards; tested to support loads over 250 kg.
Complete Ward Fittings
Includes 2 urine bag hooks, 4 IV drip holes, and 1 adjustable stainless steel IV pole.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Overall Specification | L2230 x W1015 x H500 mm |
| Bed Height | Fixed at 500 mm |
| Frame & Base | Integrated stamping frame and mattress base, epoxy-polyester powder coated |
| Back-Rest Angle | 0 - 75° (±10%) by manual crank |
| Knee-Rest Angle | 0 - 35° (±10%) by manual crank |
| Castors | Four 5" central braking castors (noiseless, support >250 kg) |
| Head & Foot Board | Detachable ABS headboard (2 pcs / 1 pair) |
| Side Rails | Collapsible side rails (2 pcs / 1 pair) |
| Quality Certifications | EU Standard, USFDA Approval |
| Standard Accessories | 4 castors, 2 side rails, 2 headboards, 2 urine hooks, 4 IV drip holes, 1 IV pole |
Precision Clinical Advantages
Integrated Stamped Steel Construction
Heavy-gauge stamped steel frame and mattress deck with baked epoxy-polyester powder finish.
Two-Crank Manual Fowler Articulation
Manual crank adjustment of backrest (0-75° ±10%) and knee-rest (0-35° ±10%).
5-Inch Central Braking Castors
Four 5" central controlled castors operated by a foot pedal chassis for simultaneous, noiseless locking.
Collapsible Side Safety Rails
Pair of fold-down collapsible side rails provide patient fall protection and fold away easily.
Detachable ABS Head & Foot Boards
High-density ABS boards easily removed for patient transfer and thorough hospital sanitation.
EU Standard & USFDA Approved
Manufactured to stringent international healthcare standards; tested to support loads over 250 kg.
Complete Ward Fittings
Includes 2 urine bag hooks, 4 IV drip holes, and 1 adjustable stainless steel IV pole.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
