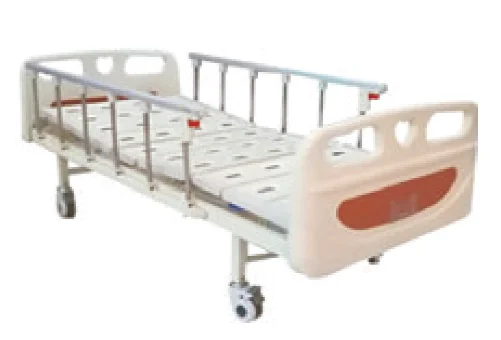

Two-Function Manual Hospital Bed with Bumpers - ATD TF2-2026
Wall-protection corner bumpers • 10-part steel deck • 6-bar aluminium rails
KEY FEATURES

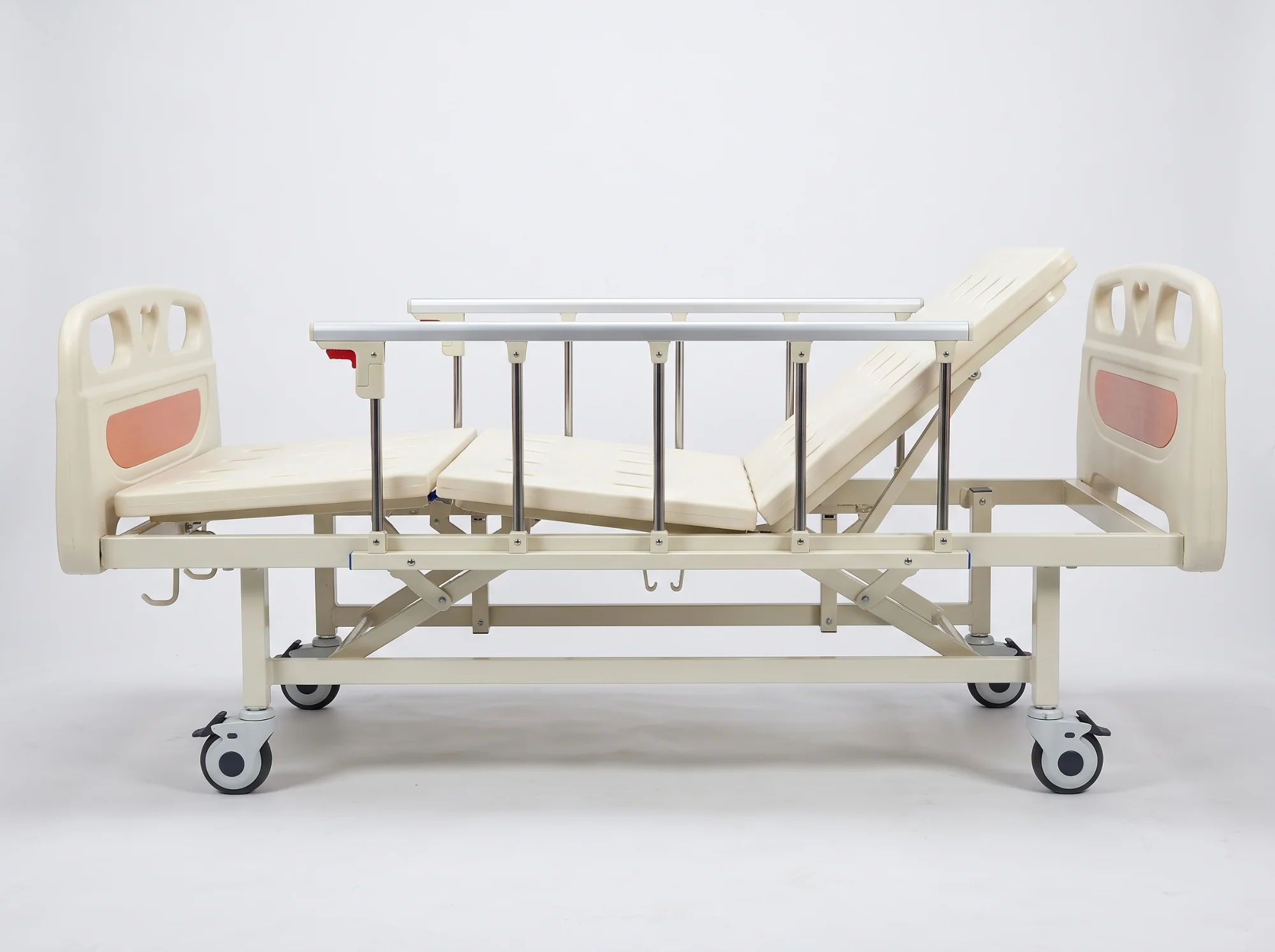

Two-Crank Fowler Position Control
Manual crank adjustment for back section (0-80° ±5°) and knee section (0-40° ±5°).
ABS Boards with Wall Bumpers
Detachable ABS head and foot boards equipped with resilient corner buffer rollers (Blue or Wooden finish).
Concealed Auto-Limit Cranks
Hidden crank handles with automatic mechanical limit protection fold under the bed frame.
10-Part Articulated Platform
10-segment cold-rolled steel mattress platform designed for optimal ergonomic patient support.
6-Bar Stainless Steel Side Rails
Two collapsible aluminium alloy side boards each reinforced with 6 vertical stainless steel bars.
Electro & Powder-Coated Steel
Durable cold-rolled steel treated with immersion electro-coating and baked epoxy powder coating.
125 mm Castors with Individual Brakes
Four 125 mm diameter wheel castors equipped with individual positive foot brakes.
Ward Utility Fittings
Supplied with 1 flexible stainless steel IV pole, 4 urine bag hooks, and 4 IV mounting sockets.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Overall Size | L2260 x W980 x H500 mm |
| Bed Height | Fixed at 500 mm |
| Back Section Adjustment | 0 - 80° (±5°) |
| Knee Section Adjustment | 0 - 40° (±5°) |
| Bed Static Load | ≥ 250 kg |
| High-Low Dynamic Load | ≥ 170 kg |
| Sleeping Platform | Made with 10 parts of cold-rolled steel |
| Head & Foot Boards | Detachable ABS boards with protective corner bumpers |
| Side Boards | 2 pcs aluminium side boards with 6 stainless steel bars each |
| Castors | 125 mm diameter castors with individual brakes |
| Color Options | Blue and Wooden color options for Head/Foot board |
| Standard Accessories | 1 pc S.S. flexible IV pole, 4 pcs urine bag hooks, 4 pcs IV holes |
Precision Clinical Advantages
Two-Crank Fowler Position Control
Manual crank adjustment for back section (0-80° ±5°) and knee section (0-40° ±5°).
ABS Boards with Wall Bumpers
Detachable ABS head and foot boards equipped with resilient corner buffer rollers (Blue or Wooden finish).
Concealed Auto-Limit Cranks
Hidden crank handles with automatic mechanical limit protection fold under the bed frame.
10-Part Articulated Platform
10-segment cold-rolled steel mattress platform designed for optimal ergonomic patient support.
6-Bar Stainless Steel Side Rails
Two collapsible aluminium alloy side boards each reinforced with 6 vertical stainless steel bars.
Electro & Powder-Coated Steel
Durable cold-rolled steel treated with immersion electro-coating and baked epoxy powder coating.
125 mm Castors with Individual Brakes
Four 125 mm diameter wheel castors equipped with individual positive foot brakes.
Ward Utility Fittings
Supplied with 1 flexible stainless steel IV pole, 4 urine bag hooks, and 4 IV mounting sockets.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
