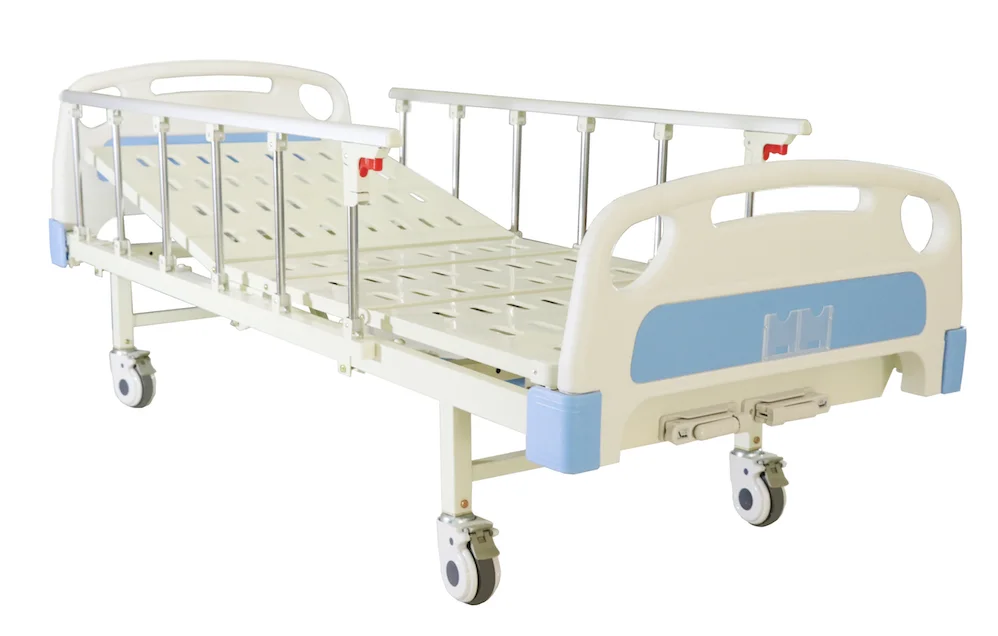

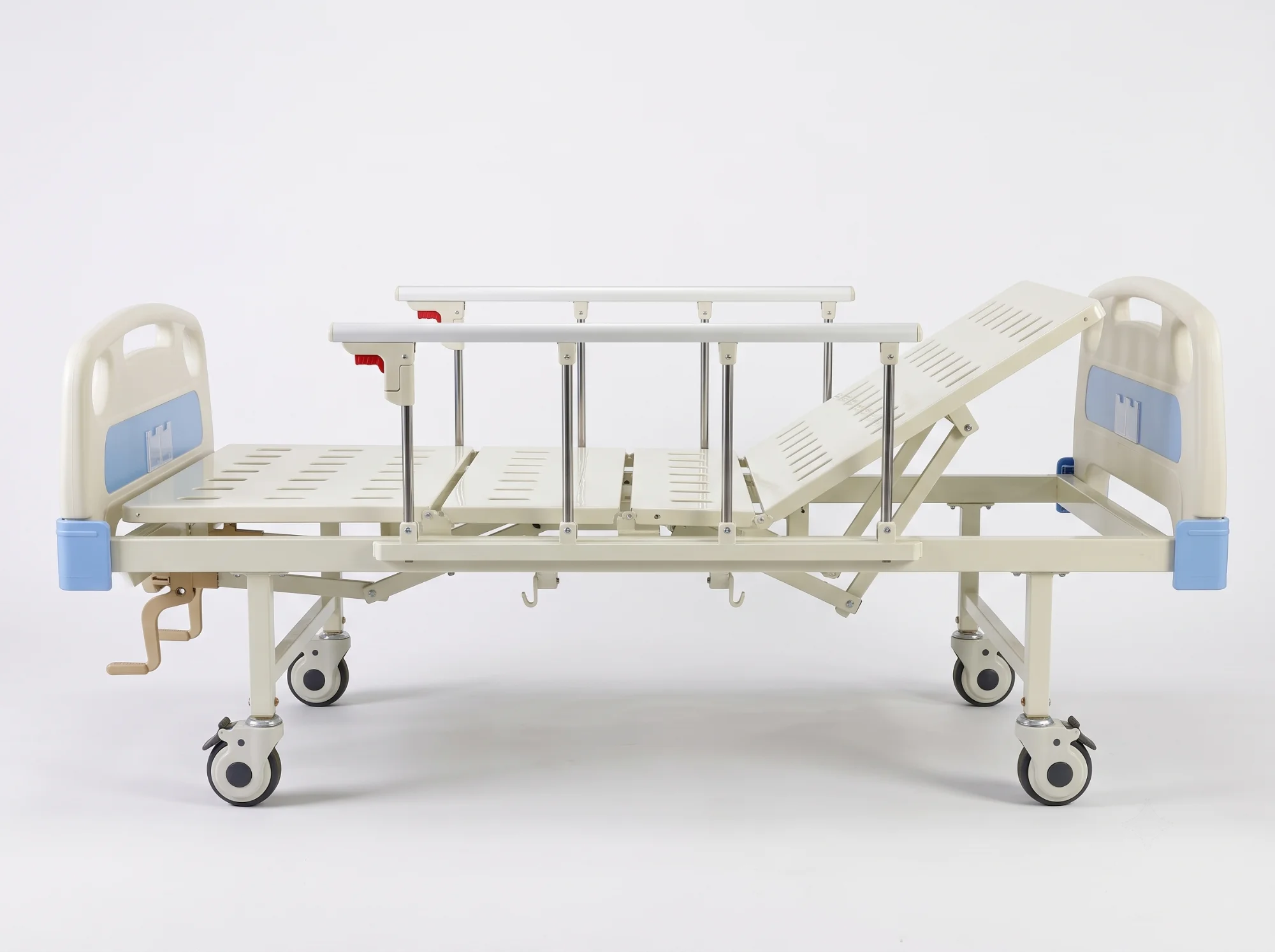

Manual Two-Crank Hospital Bed - ATD TF1-2026
10-part steel deck • 6-bar aluminium rails • Concealed auto-limit cranks
KEY FEATURES
Two Manual Crank Functions
Precision manual crank control of back section (0-80° ±5°) and knee section (0-40° ±5°).
Concealed Auto-Limit Cranks
Hidden crank handles with automatic mechanical limit protection fold neatly under the bed frame.
10-Part Sectional Platform
Sectioned 10-segment cold-rolled steel mattress base contours naturally to the patient’s body.
6-Bar Aluminium Side Boards
Pair of aluminium side boards reinforced with six vertical stainless steel bars each for superior safety.
Electro & Powder-Coated Steel
Cold-rolled steel frame treated with immersion electro-coating and baked epoxy powder coating.
125 mm Diameter Castors
Four 125 mm diameter castors with individual wheel brakes for smooth, noiseless transport.
Detachable ABS Head & Foot Boards
Easily removable ABS boards available in clean Blue or attractive Wooden finish options.
Complete Ward Accessories
Supplied with 1 flexible stainless steel IV pole, 4 urine bag hooks, and 4 IV mounting holes.
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Overall Size | L2260 x W980 x H500 mm |
| Bed Height | Fixed at 500 mm |
| Back Section Adjustment | 0 - 80° (±5°) |
| Knee Section Adjustment | 0 - 40° (±5°) |
| Bed Static Load | ≥ 250 kg |
| High-Low Dynamic Load | ≥ 170 kg |
| Sleeping Platform | Made with 10 parts of cold-rolled steel |
| Frame Material | Cold-rolled steel, electro-coated & powder-coated |
| Side Boards | 2 pcs aluminium side boards with 6 stainless steel bars each |
| Castors | 125 mm diameter castors with individual brakes |
| Color Options | Blue and Wooden color options for Head/Foot board |
| Standard Accessories | 1 pc S.S. flexible IV pole, 4 pcs urine bag hooks, 4 pcs IV holes |
Precision Clinical Advantages
Two Manual Crank Functions
Precision manual crank control of back section (0-80° ±5°) and knee section (0-40° ±5°).
Concealed Auto-Limit Cranks
Hidden crank handles with automatic mechanical limit protection fold neatly under the bed frame.
10-Part Sectional Platform
Sectioned 10-segment cold-rolled steel mattress base contours naturally to the patient’s body.
6-Bar Aluminium Side Boards
Pair of aluminium side boards reinforced with six vertical stainless steel bars each for superior safety.
Electro & Powder-Coated Steel
Cold-rolled steel frame treated with immersion electro-coating and baked epoxy powder coating.
125 mm Diameter Castors
Four 125 mm diameter castors with individual wheel brakes for smooth, noiseless transport.
Detachable ABS Head & Foot Boards
Easily removable ABS boards available in clean Blue or attractive Wooden finish options.
Complete Ward Accessories
Supplied with 1 flexible stainless steel IV pole, 4 urine bag hooks, and 4 IV mounting holes.
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
