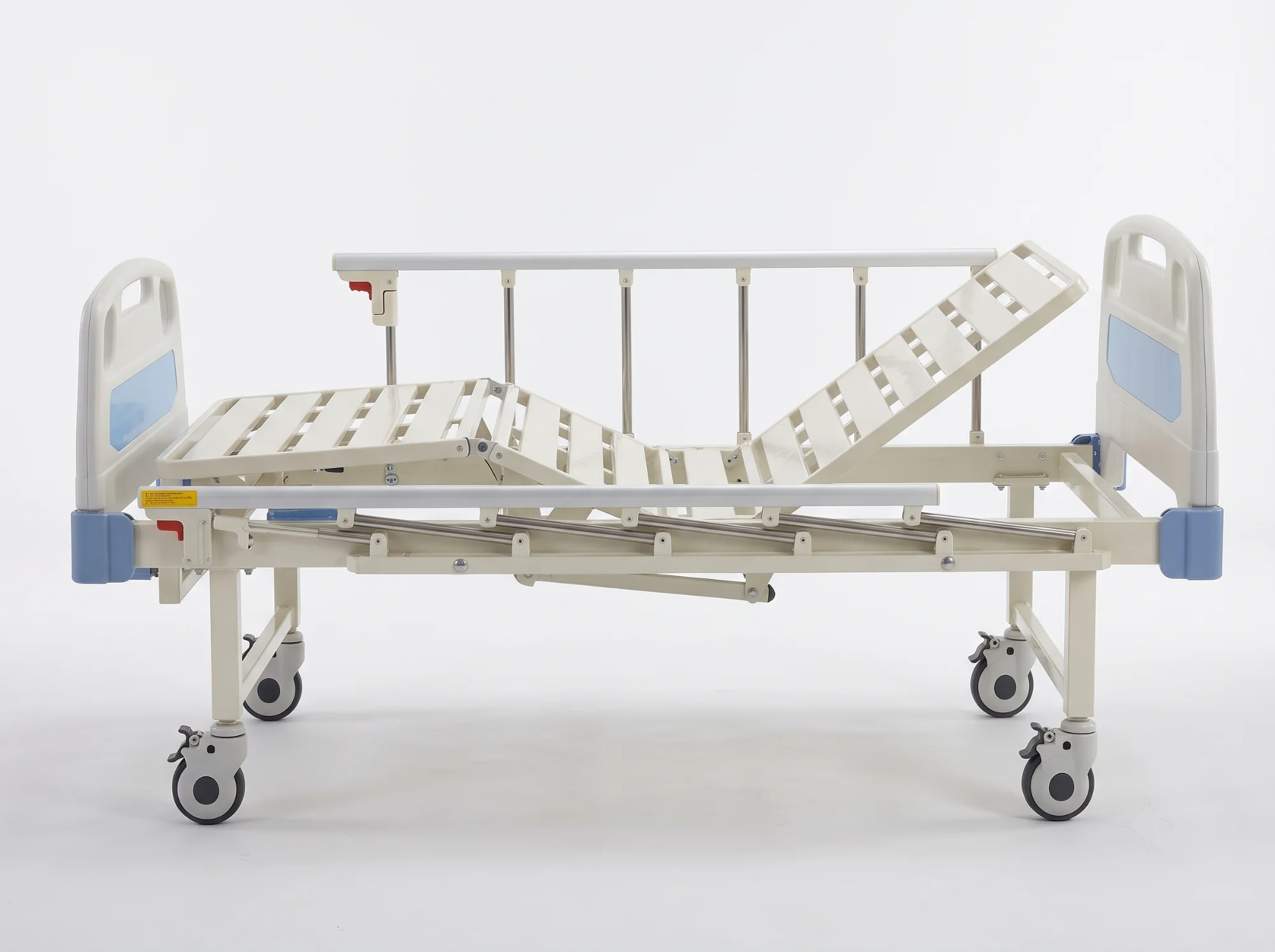

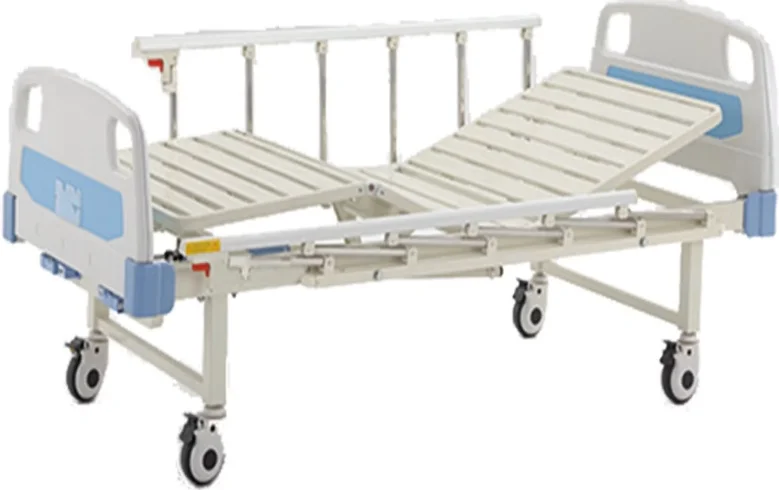

Movable Full-Fowler Bed with ABS (Single Locking) - ATD FF1-2026
Full-fowler two crank control • Torque release handles • Removable ABS boards
KEY FEATURES
Full-Fowler Dual Articulation
Independent manual crank adjustment for backrest elevation and knee-rest elevation.
Foldable Torque-Release Cranks
Concealed torque-release crank handles prevent mechanical damage from over-cranking and tuck away neatly.
Pressed Steel Mattress Deck
Sectioned pressed steel mattress platform finished with anti-rust epoxy powder coating.
Removable ABS Head/Foot Boards
Tough ABS plastic boards with auto-locking stoppers for easy cleaning, decontamination, and patient access.
Collapsible Aluminium Rails
Full-length aluminium alloy side safety rails fold down smoothly for safe patient entry and exit.
125 mm Single-Locking Castors
Four 125 mm swivel wheels with individual foot brakes ensure smooth transit and positive locking.
Four-Corner Anti-Bumpers
Protective corner buffers prevent damage to hospital walls, doorframes, and bed structure.
Ward Utility Provisions
Built-in urine bag holder hooks and multiple IV rod mounting locations.
Optional Fowler Mattress
Compatible with 4-section high-density waterproof foam mattress (Size: L 770+245+345+610 mm, W 890 mm).
TECHNICAL PARAMETERS
DETAILED TECHNICAL SPECIFICATIONS
| Overall Dimensions | L2150 x W980 x H500 mm |
| Bed Height | Fixed at 500 mm |
| Backrest Range | 0 - 75° (Manual Crank) |
| Kneerest Range | 0 - 40° (Manual Crank) |
| Mattress Platform | Pressed steel base with powder coating |
| Crank Mechanism | Two cranks with torque release handles |
| Head & Foot Boards | Removable ABS plastic with auto-locking stopper |
| Side Rails | Aluminium alloy collapsible side rails |
| Castors | 125 mm single-locking wheel casters |
| Corner Protection | Anti-bumper rollers in four corners |
| Safe Load Capacity | ≥ 220 kg |
| Included Accessories | Urine bag holder, IV rod locations |
Precision Clinical Advantages
Full-Fowler Dual Articulation
Independent manual crank adjustment for backrest elevation and knee-rest elevation.
Foldable Torque-Release Cranks
Concealed torque-release crank handles prevent mechanical damage from over-cranking and tuck away neatly.
Pressed Steel Mattress Deck
Sectioned pressed steel mattress platform finished with anti-rust epoxy powder coating.
Removable ABS Head/Foot Boards
Tough ABS plastic boards with auto-locking stoppers for easy cleaning, decontamination, and patient access.
Collapsible Aluminium Rails
Full-length aluminium alloy side safety rails fold down smoothly for safe patient entry and exit.
125 mm Single-Locking Castors
Four 125 mm swivel wheels with individual foot brakes ensure smooth transit and positive locking.
Four-Corner Anti-Bumpers
Protective corner buffers prevent damage to hospital walls, doorframes, and bed structure.
Ward Utility Provisions
Built-in urine bag holder hooks and multiple IV rod mounting locations.
Optional Fowler Mattress
Compatible with 4-section high-density waterproof foam mattress (Size: L 770+245+345+610 mm, W 890 mm).
Where This Product Is Used
ICU & Critical Care
Optimal for high dependency patient care and continuous monitoring.
Emergency Response
Designed for rapid mobility, central locking, and instant release.
General Patient Wards
Comfortable ergonomic positioning for patient recovery and nursing ease.
