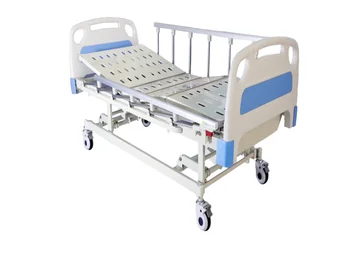

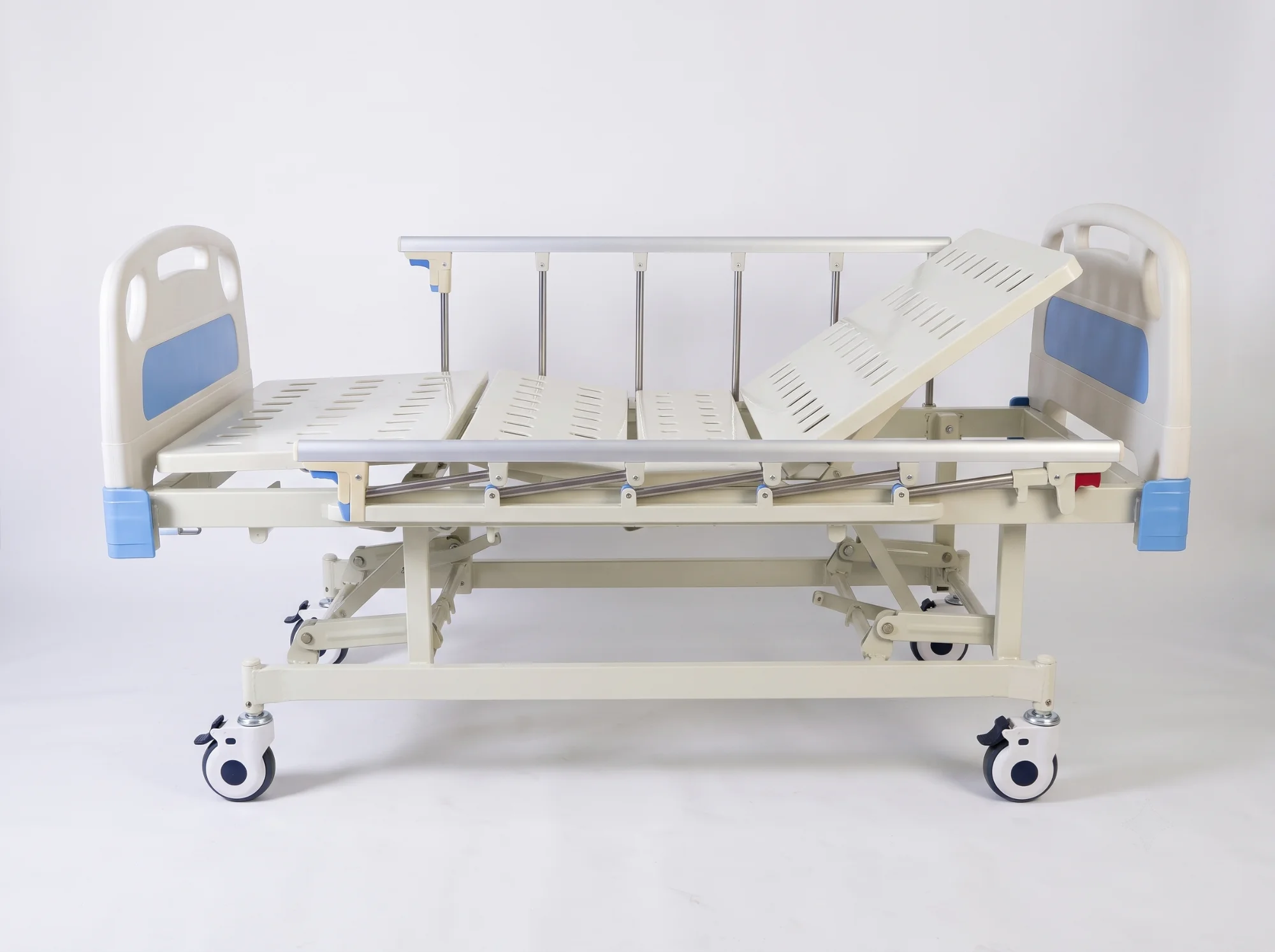

Three-Function Electric Hospital Bed (Aluminium Rails) - ATD 32-2026
TiMOTION Taiwan Drive • 6-Bar Aluminium Rails • 10-Part Sleeping Platform
CORE SPECIFICATIONS

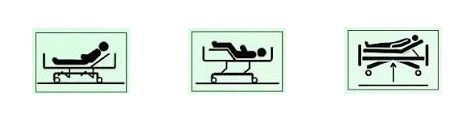

THREE-FUNCTION ADJUSTMENT
Backrest
0–80° (±5°)
Knee Rest
0–40° (±5°)
Hi-Low
500–780 mm
BED FRAME & SAFETY FEATURES
Detachable ABS Boards
Head and foot boards designed for convenient removal.
Coated Steel Construction
Cold-rolled steel with electro-coating and powder coating.
Ten-Part Sleeping Platform
Strong sectional steel mattress-support platform.
Aluminium Side Rails
Two rails with six stainless-steel vertical bars each.
Individual-Brake Castors
Four 125 mm Taiwan Secure castors with individual brakes.
TiMOTION Drive System
Four motors, one handset and one control box.
ACCESSORIES & COLOUR OPTIONS
Precision Clinical Advantages
Backrest
0–80° (±5°)
Knee Rest
0–40° (±5°)
Hi-Low
500–780 mm
Detachable ABS Boards
Head and foot boards designed for convenient removal.
Coated Steel Construction
Cold-rolled steel with electro-coating and powder coating.
Ten-Part Sleeping Platform
Strong sectional steel mattress-support platform.
Aluminium Side Rails
Two rails with six stainless-steel vertical bars each.
Individual-Brake Castors
Four 125 mm Taiwan Secure castors with individual brakes.
TiMOTION Drive System
Four motors, one handset and one control box.
Where This Product Is Used
ICU & Recovery
TiMOTION powered backrest, kneerest, and elevation with hand remote.
Patient Safety
Two full-length 6-bar collapsible aluminium safety side rails.
General Ward Care
Individual brake castors and cold-rolled powder-coated steel frame.
