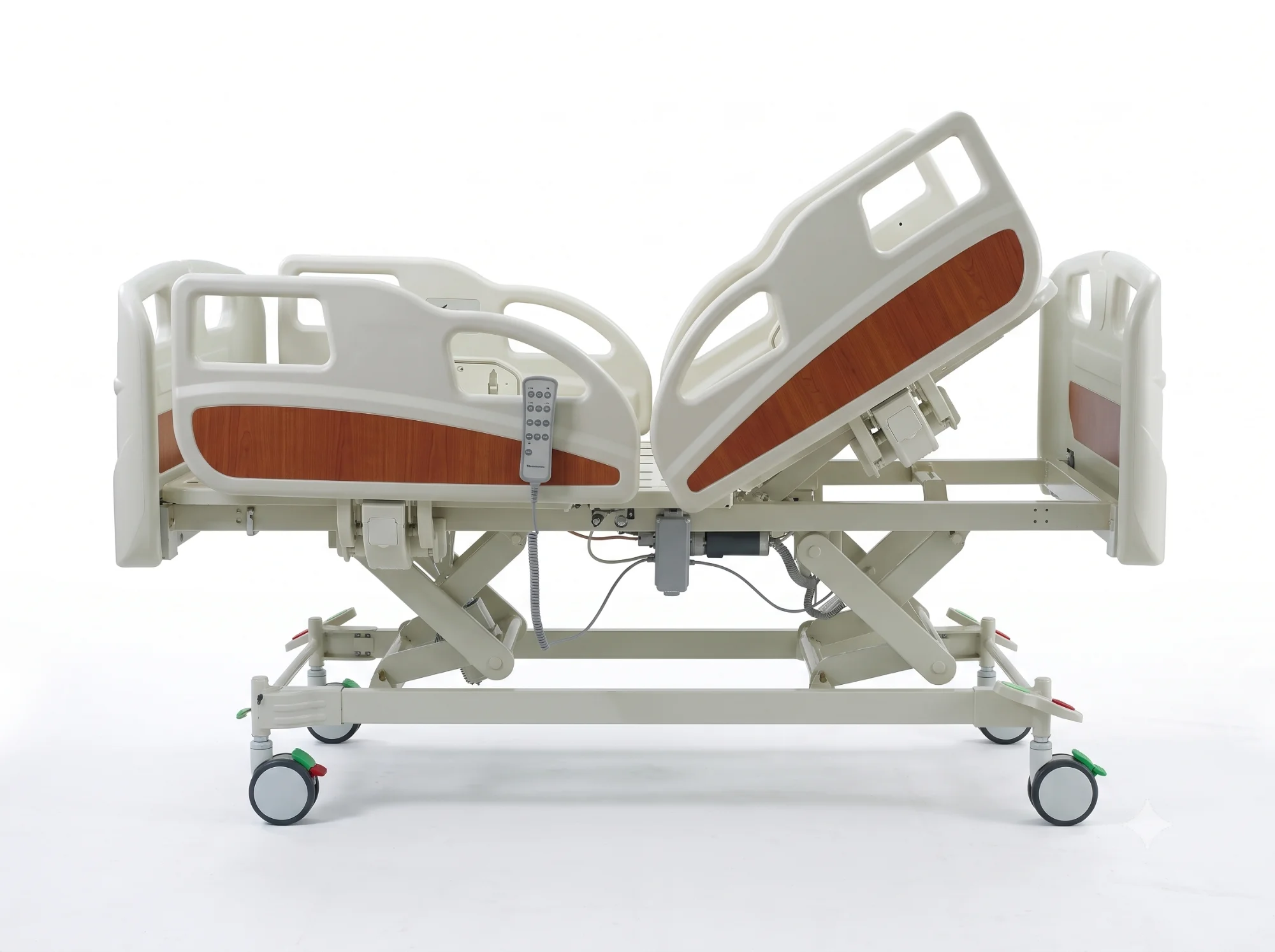

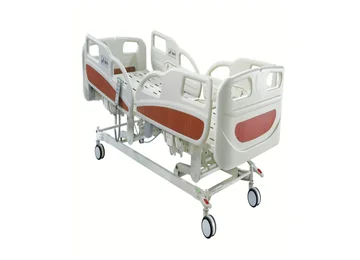

Three-Function Electric Hospital Bed - ATD 31-2026
TiMOTION Taiwan Drive • 10-Part Sectional Platform • Dual-Side Central Brake
CORE SPECIFICATIONS

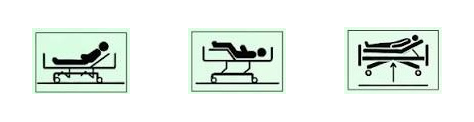

THREE-FUNCTION ADJUSTMENT
Backrest
0–80° (±5°)
Knee Rest
0–40° (±5°)
Hi-Low
430–720 mm
Manual CPR
Backrest release
BED FRAME & SAFETY FEATURES
Detachable ABS Boards
Head and foot boards supplied with protective bumpers.
Coated Steel Construction
Cold-rolled steel with electro-coating and powder coating.
Ten-Part Sleeping Platform
Strong sectional steel mattress-support platform.
Four PP Side Rails
980 × 390 × 45 mm long side boards.
Backrest Angle Display
Position-angle indicators incorporated into the side rails.
Central-Locking Castors
Four 125 mm Taiwan Secure castors.
Dual-Side Brake Pedals
Central-lock steps on both left and right sides.
TiMOTION Drive System
Four motors, one handset and one control box; no battery.
ACCESSORIES & COLOUR OPTIONS
Precision Clinical Advantages
Backrest
0–80° (±5°)
Knee Rest
0–40° (±5°)
Hi-Low
430–720 mm
Manual CPR
Backrest release
Detachable ABS Boards
Head and foot boards supplied with protective bumpers.
Coated Steel Construction
Cold-rolled steel with electro-coating and powder coating.
Ten-Part Sleeping Platform
Strong sectional steel mattress-support platform.
Four PP Side Rails
980 × 390 × 45 mm long side boards.
Backrest Angle Display
Position-angle indicators incorporated into the side rails.
Central-Locking Castors
Four 125 mm Taiwan Secure castors.
Dual-Side Brake Pedals
Central-lock steps on both left and right sides.
TiMOTION Drive System
Four motors, one handset and one control box; no battery.
Where This Product Is Used

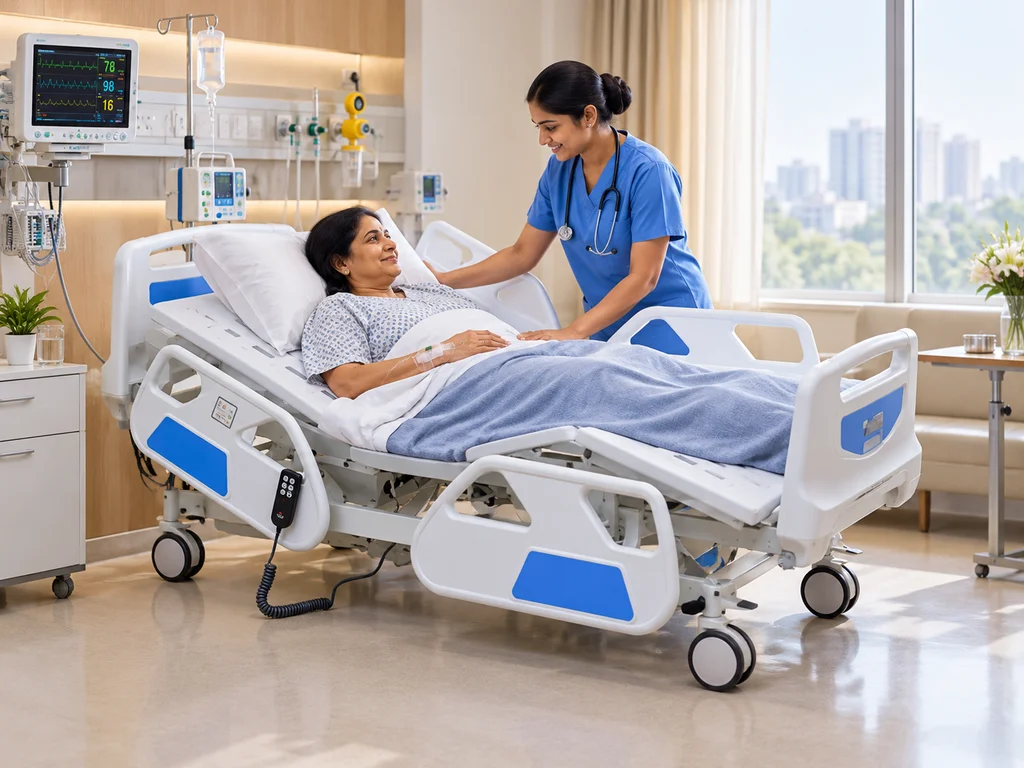

ICU & Recovery
TiMOTION 4-motor linear drive with rapid manual CPR backrest release.
General Patient Wards
Dual-side central brake locking and 10-part anatomical steel platform.
Custom Ward Aesthetics
Choice of clinical blue or warm wooden-tone head/foot boards and rails.
