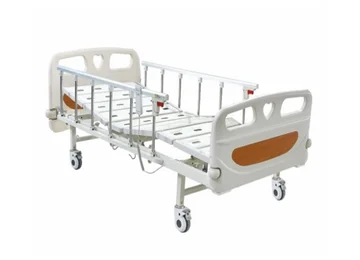

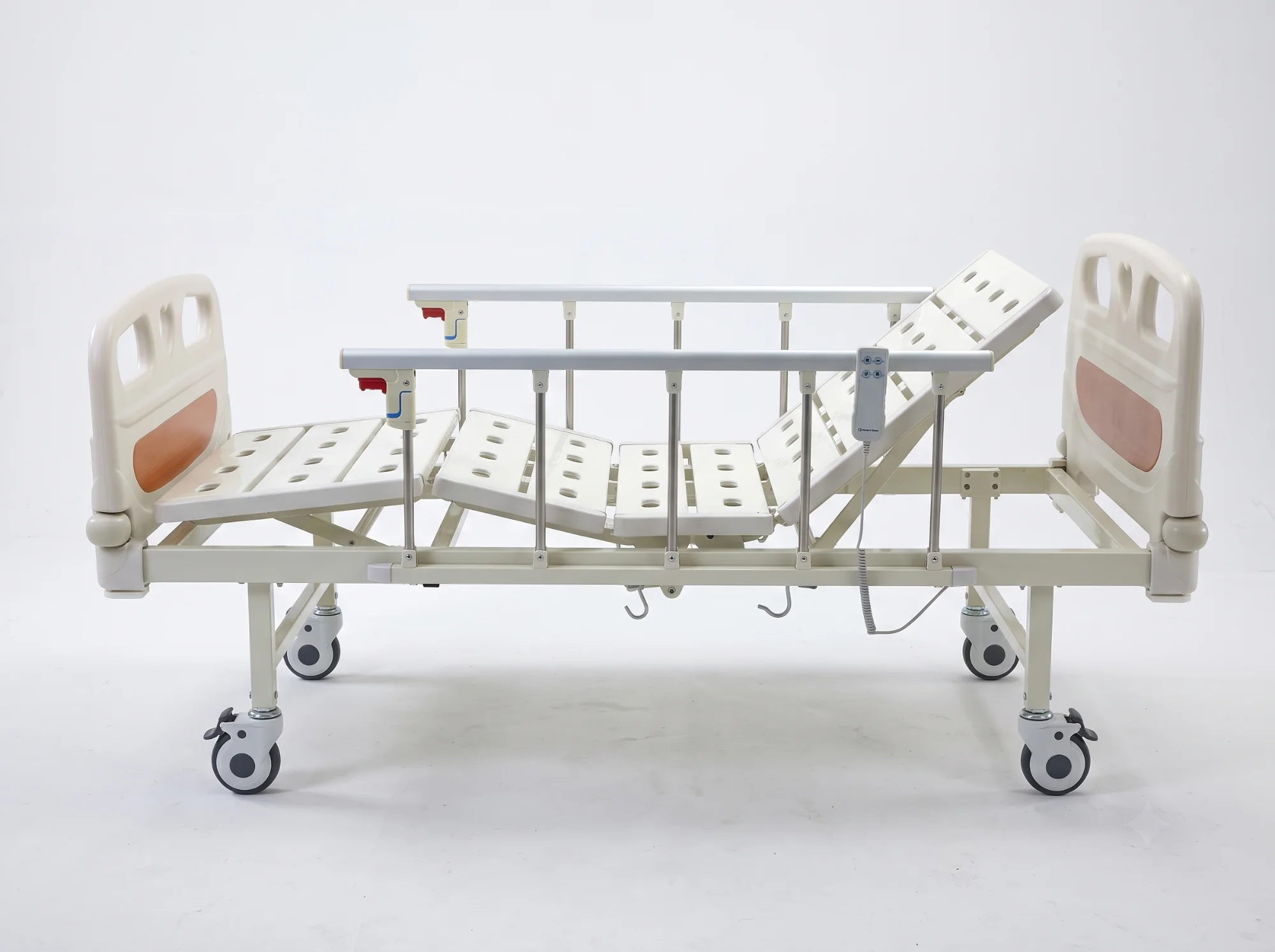

Two-Function Electric Hospital Bed (Custom Finish) - ATD 22-2026
Two-Function Motorized Fowler • Ten-Part Sectional Deck • Fixed 500 mm Height
CORE SPECIFICATIONS
TWO-FUNCTION ADJUSTMENT
Back Section
0–80° (±5°)
Knee Section
0–40° (±5°)
BED FRAME & PERFORMANCE
Detachable ABS Boards
Removable head and foot boards for convenient handling.
Cold-Rolled Steel Frame
Electro-coated and powder-coated for lasting protection.
Ten-Part Sleeping Platform
Sectioned steel mattress platform for bed articulation.
Aluminium Side Rails
Two rails, each fitted with six stainless-steel bars.
Secure Castors
125 mm Taiwan Secure castors with individual brakes.
Static Load Capacity
Strong bed construction rated for at least 250 kg.
Dynamic Load Capacity
Operational dynamic load rating of at least 170 kg.
Colour Options
Blue or wooden finish for the head and foot boards.
STANDARD ACCESSORIES
Precision Clinical Advantages
Back Section
0–80° (±5°)
Knee Section
0–40° (±5°)
Detachable ABS Boards
Removable head and foot boards for convenient handling.
Cold-Rolled Steel Frame
Electro-coated and powder-coated for lasting protection.
Ten-Part Sleeping Platform
Sectioned steel mattress platform for bed articulation.
Aluminium Side Rails
Two rails, each fitted with six stainless-steel bars.
Secure Castors
125 mm Taiwan Secure castors with individual brakes.
Static Load Capacity
Strong bed construction rated for at least 250 kg.
Dynamic Load Capacity
Operational dynamic load rating of at least 170 kg.
Colour Options
Blue or wooden finish for the head and foot boards.
Where This Product Is Used
General Patient Care
Electric fowler positioning for patient comfort during recuperation.
Long-Term Care Facilities
Warm wooden or clinical blue styling to match room decor.
Elderly & Step-Down Care
Secure 6-bar safety rails and stable 500 mm fixed bed height.
